- Intro:
According to factory electricity consumption conditions, it may needs power transformer, Rectifier transformer and so on

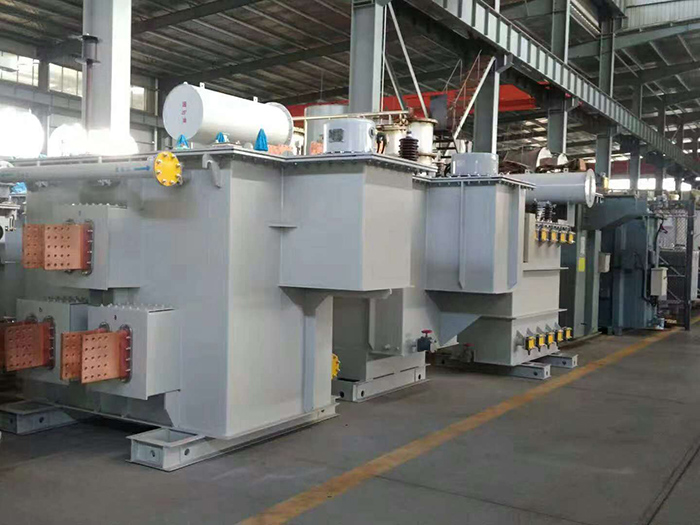

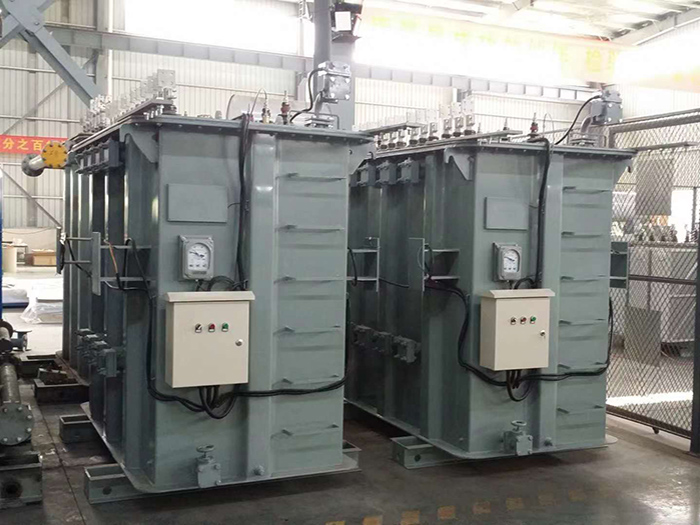

ZS-4000/11-0.66*2 Transformer --DC motor | ||
No | Name | Detail specification |
1 | Model | ZS-4000KVA/11-0.66*2 |
2 | Rated capacity (kVA)) | 4000/2×2000KVA |
3 | Phase | High voltage 3phase, low voltage :6phase |
4 | Rated Primary voltage (KV) (AC) | 11KV |
5 | Rated Primary current (A)(AC)
| 209.9A |
6 | Rated secondary voltage(KV) (AC)
| 0.66KV*2 |
7 | Rated secondary current (A) (AC)
| 1749.6A*2 |
8 | Connection | Dd0y11 |
9 | Hz | 50HZ |
10 | Short circuit impedance % | 6-8% |
11 | Work way | Indoor or outdoor |
12 | voltage adjusting way | Manual voltage regulation without excitation grade 3 |
13 | Temperature rise (K) | 55K |
14 |
Winding up (K) | 65K |
16 | Pulse number | 12 Pulse |
17 | Cooling way | ONAN |
The above info is one sample of transformer specification
