Detailed description

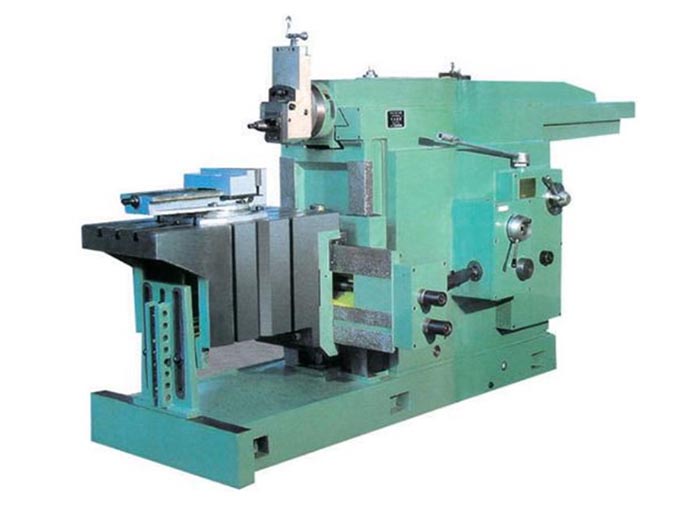

Specifications | B60100/400(Made-in-China) |
Ram Stroke | 1000mm |
Number of speeds | 6 |
Ram strokes per minute | 15-20-29-42-58-83 |
Logitudinal travel of table | 800mm |
Vertical travel of table | 380mm |
Distance table to ram | 400mm |
Table dimensions | 1000×50mm |
Vertical travel of tool head | 160mm |
Automatic horizontal feeds of table | 0.3--3mm |
Automatic down feeds of toolholder | 0.15-0.5mm |
Power | 9.5hp(7.5kw) |
