Reheating Furnace
- Category:Reheating Furnace
- Intro:

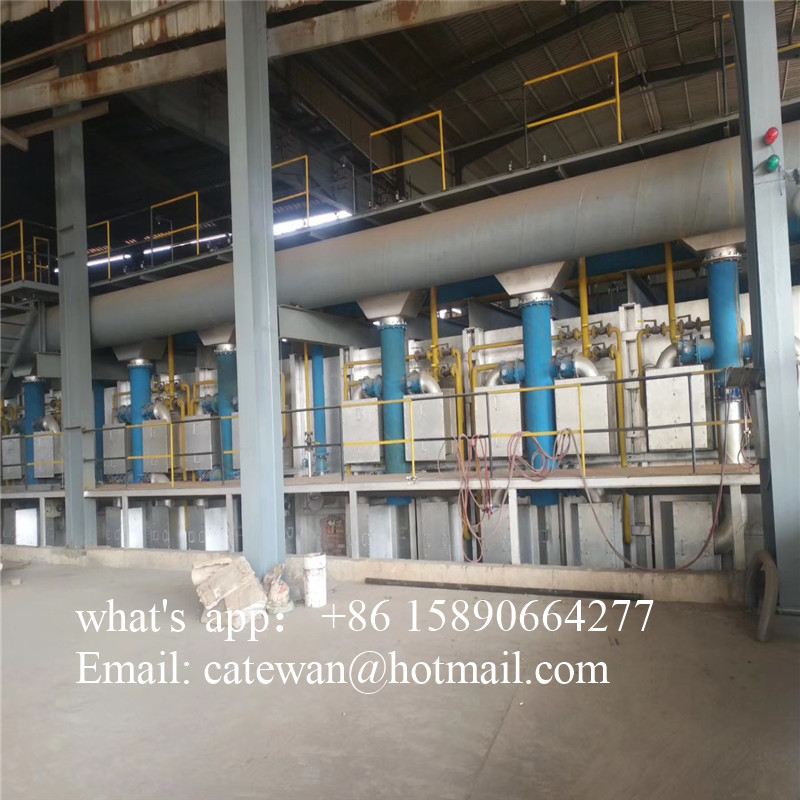

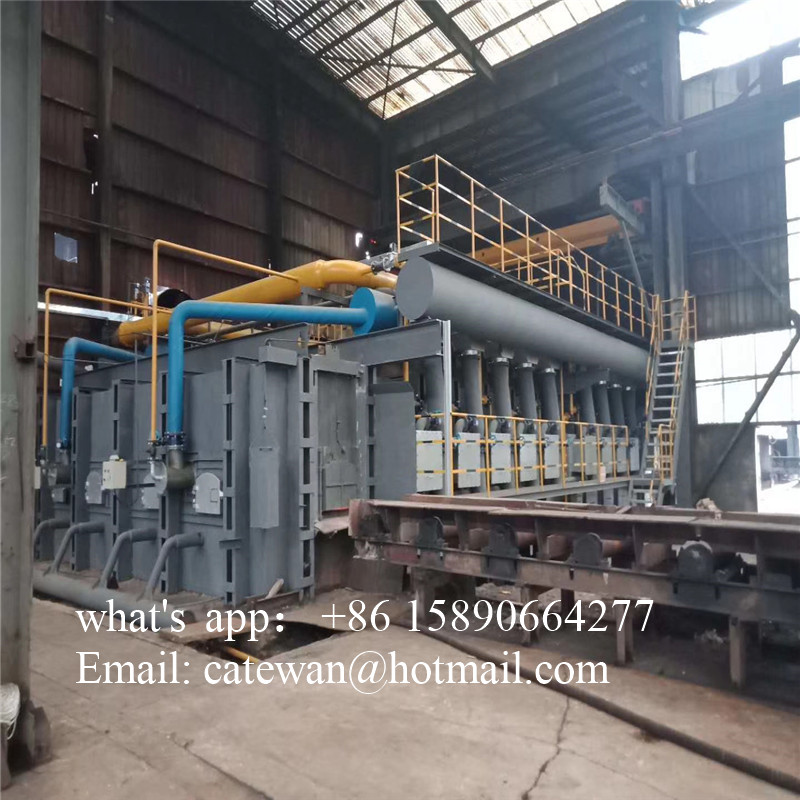

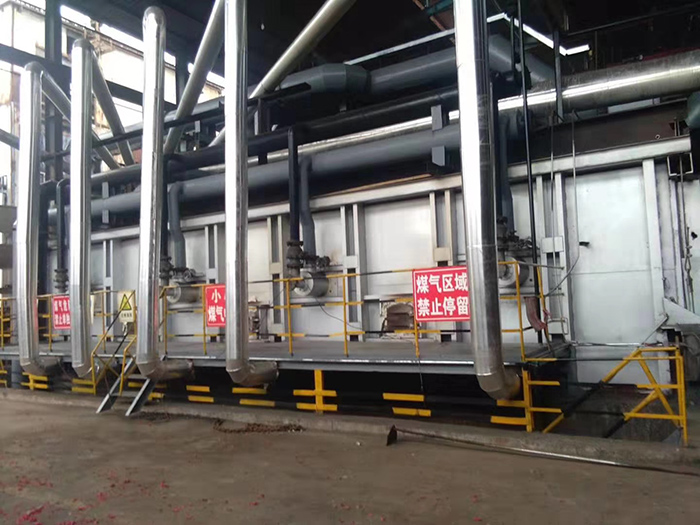

Reheating furnace is to heat the cold billets to be temperature between 900℃ and 1050℃, the heating resource can be natural gas, coal, heavy oil and so on. Our reheating furnace is the temperature keeping model, automatic PLC control, it saves a lot energy, Per ton steel will consume 36m³natural gas, we can do capacity from 5T to 50T per hour. Design and manufacture it based on customer request.
Our steel billets reheating furnace include the following items
No | Name | Unit | Qty |
1. | Machine spare parts | set | 1 |
2 | Metal materials | set | 1 |
3 | Refractory | set | 1 |
4 | PLC control cabinet | set | 1 |
5 | Other materials | set | 1 |
6 | Design and constructions | set | 1 |
Our steel billets reheating furnace heating fuel can be natural gas, coal and so on .
it is energy-saving type reheating furnace, the consumption for natural gas only 36m³/T steel.
1.Design Conditions
(1) use of reheating furnace: pre-heating of rolling steel billets。
(2)reheating furnace model: steel push heating furnace
(3)burning mode: air single regenerative type
(4)heating mode: one--side heating
(5)fuel type: natural gas ( calorific value 8600Kcal/ Nm3 )
(6)heating temperature 1150℃(according to the requirement of rolling)
(7)steel type of heating: carbon-steel, optimal carbon-steel, alloy steel

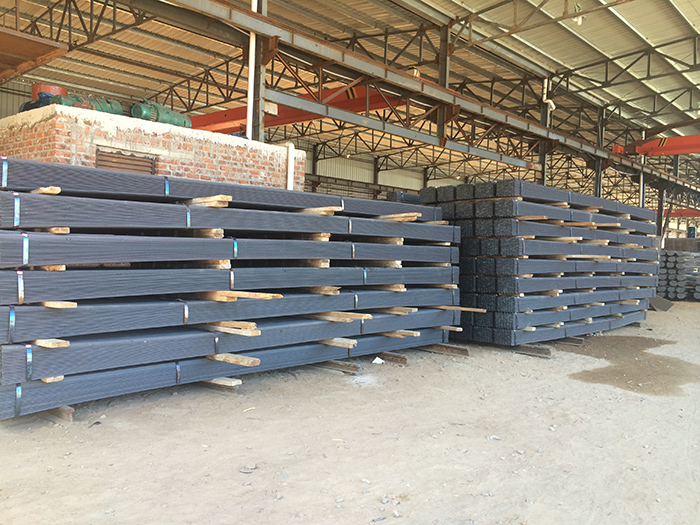

(8)size of steel billets: 120×120×3000mm
(9)method of inputting and outputting of the steel billets: end in and side out the steel billets
(10)slide-way of pulsion: Zirconium corundum convex groove composite brick
(11)Rated heating capacity: 10t/h (steel billets)
(12)difference in temperature of outputting the steel billets: ≤30℃
(13)effective size: length9000mm×width3480mm
(14)standard altitude of steel tapping: will decide
(15)reversing way: two-position three-way valve dispersion commutation
(16)maximum unit consumption: 36Nm³/ t steel
(17)burning sector: second stage
(18)natural gas switching mode: electromagnetic valve

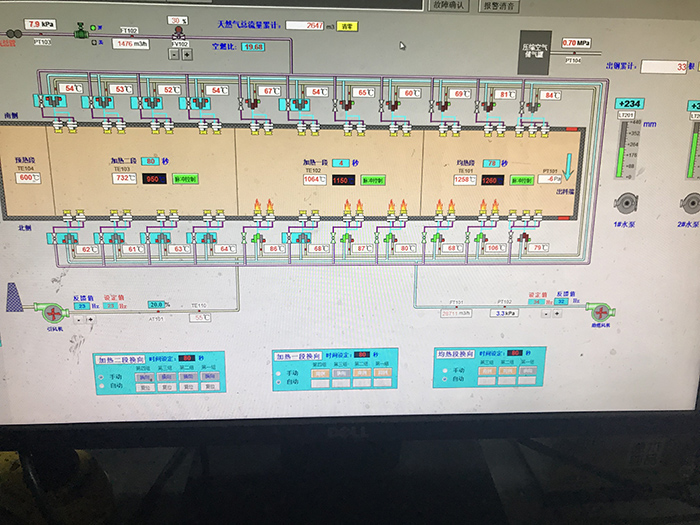

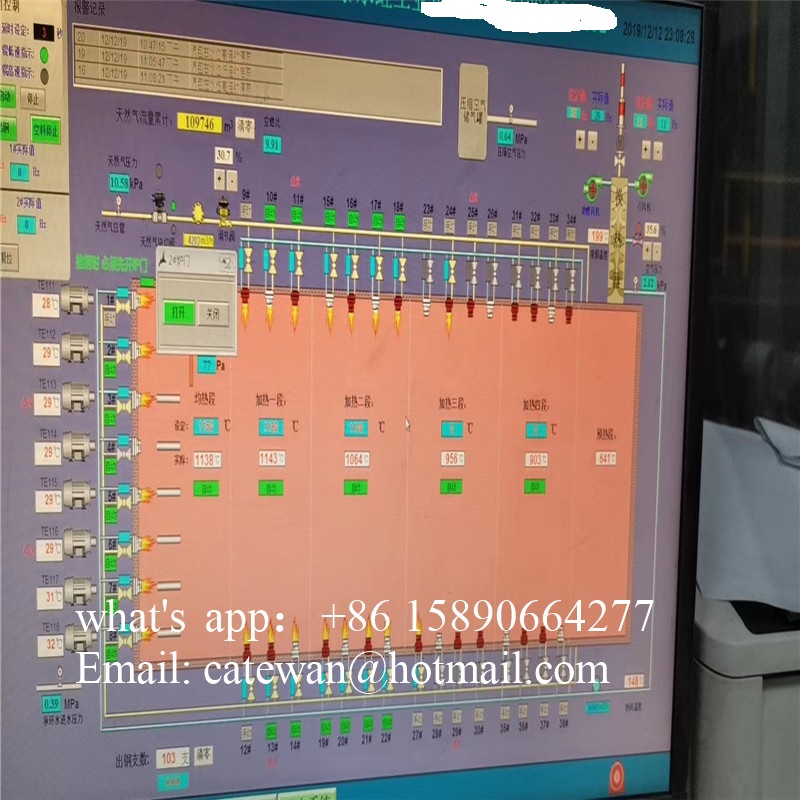

(19)control mode: fully automatic / semi-automatic / manual switchable control
