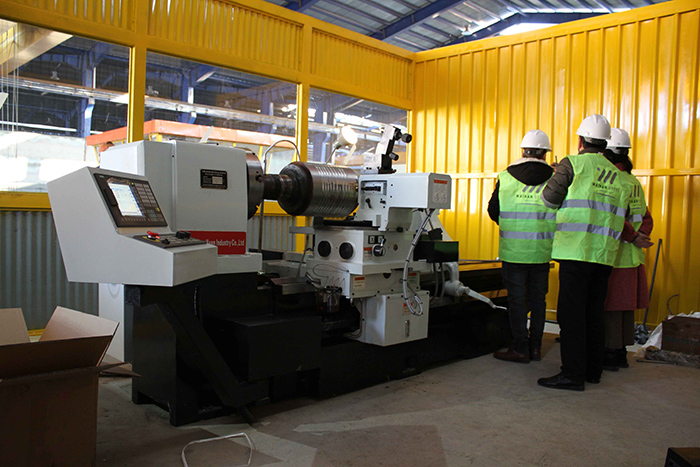

Roller CNC Roller Notching Machine
- Category：Roller CNC Roller Notching Machine
- Intro：
Detailed description
| Item | XK9350-ZF |
| Max, diamerer of processed roller | Φ100- Φ500mm |
| Max. diamerer of procrssed roller | 2500mm |
| Suitable for threaded steel socecification | Φ6-50mm |
| Cutting and milling method | Milling head swivel cutting/"Fly-cutter"cutting |
| Rotation of main milling head shaft | 0-5000rpm/2.0kw,2000-10000rpm/2.2kw |
| Minimum feed unit | 0.01mm(AC servo drive) |
| Conical hole for main head frame shaft | MT5# |
| Chuck is used for mian head frame shaft | Φ400mm |
| CNC system | Mitsuaishi digital control system. Japan |
| Power of main motor | 380V/50HZ |
| Dimension(L×W×H) | 4000×1580×1900 |
| Machine weight | 4700kg |
| Remarks | Standard roll, Complex ring, Carbide ring |
