Spectrometer
- Category:Spectrometer
- Intro:
Our spectrometer is with high light system, automatic light checking, the wave length scope is from 170nm to 580nm, the focal length is 400mm, detector is CCD, electtricity is 100-1000HZ, it mainly check Fe, C, S, P, Ni, Cr and so on
Item | W5 Spectrometer |
Optical system | |
Optical structure | The Paschen Runge construction full vacuum type optics system |
Room temperature | 35℃±0.5℃ |
Wavelength range | 165~589nm (Extendable) |
Focal length | 400mm |
Grating line | 2400m1/mm |
First order spectral line dispersion rare | 1.2nm/mm |
Detector | Multi block high performance linear CMOS array |
Average resolution ratio | 10pm/pixel |
Excitation table | |
Gas | Rushing argon (99.999%) |
Argon flow rate | When excited: 3-5L/min Standby time: no need for standby traffic |
Electrode | Tungsten electrode technology |
Purge | Automatic purge function |
Make up | Thermal deformation self-compensation design |
Analyze the gap | Sample stage:3.4 mm |
Excitation light | |
Type | HEPS |
Frequency | 100-1000HZ |
Discharge current | 1-400A |
Special technology | Optimization of discharge parameters design |
Pre -combustion | High-energy pre-combustion technology |
Processor | High end ARM, high-speed data synchronization acquisition and processing |
Data collection system | |
Interface | Ethernet data transmission based on DM9000A |
Power | 220VAC 50/60Hz(Customized) |
Others | |
Base | Fe, Cu, Al, Ni, Co, Mg, Ti, Zn, Pb, Sn, Ag, Mn, Cr etc |
Power consumption | Maximum:750W standby:100W |
Working temperature | 10-35℃(temperature ≥5°C) |
Working humidity | 20-85% |
Dimension | 860mm(L)*680mm(W)*438mm(H) |
Weight | About 100Kg |

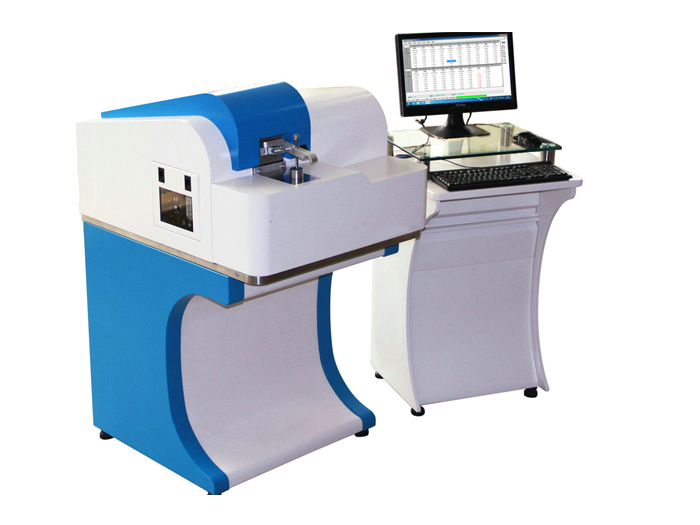

Model | TY-9000 | |
Optical System | Focal length | 400mm |
Wavelength range | 130nm-800nm | |
Detector | High resolution CCD Multi detectors | |
Degree of vacuum | Auto control within 6-20 pa | |
Pixel resolution | 30pm | |
Grating line | 2400m1/mm | |
First order spectral line dispersion rare | 1.2nm/mm | |
Average resolution ratio | 10pm/pixel | |
Full spectrum | ||
Light room tempetature is controllled automatically |
